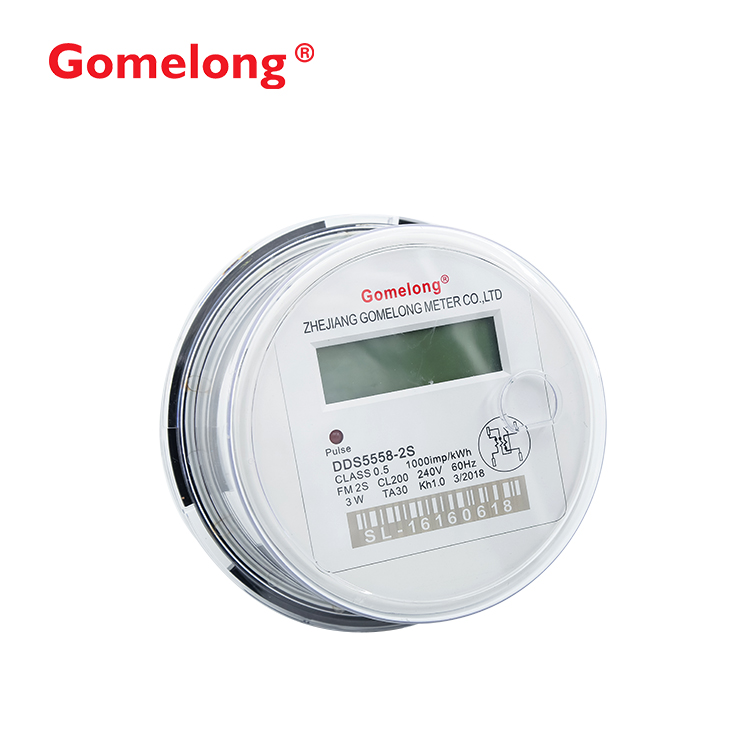

DDS55558 CL200 Single Phase Two Wire 1s/2s Energy Meter

Name: DDS55558 CL200 Single Phase Two Wire 1s2s Energy Meter
Brand: GOMELONG
Price: 6.70 USD

Buy cheap DDS55558 CL200 Single Phase Two Wire 1s/2s Energy Meter product

Place of Origin : Zhejiang, China

Brand Name : GOMELONG

Model Number : DDS5558

Display Type : Digital Only

Phase : Single Phase

Measuring Energy Range : 000000---99999.9kwh

Accuracy Class : 1.0 or 2.0

Output Voltage : 110V 220V 230V 240V

Operating Temperature : -20℃-50℃

Dimensions : 235mm*176mm*67mm

Standard : IEC 61036

Type : Electric Meter

Name : Single Phase Two Wire 1s/2s energy meter

Display : LCD

Rated current : 100A ,200A

Certificate : ISO9001

Color : White

Frequency : 50HZ/60HZ

Packaging Details : standard export package

Port : Ningbo

Supply Ability : 100000 Piece/Pieces per Month 1s/2s energy meter

Price : $6.70 - $7.80/Pieces

Contact Now

DDS55558 CL200 Single Phase Two Wire 1s/2s Energy Meter

Product Overviews

DDS55558 CL200 Single Phase Two Wire 1s/2s Energy Meter

round hour meter

Application

Model DDS5558 single-phase ANSI meter is a kind of new style single phase two wire active energy meter, it adopts micro-electronics technique, and imported large scale integrate circuit, uses advanced technique of digital and SMT techniques, etc. The meter completely accords with relevant technical requirements of class 1 single phase active energy meter stipulated in international standard IEC&ANSI standard.

Features

- Kwh/MD/V/A display, Back-up battery

- Comply with ANSI C12.1/ ANSI C12.10/ANSI C12.18/ ANSI C12.19/ ANSI C12.20

- Maximum demand measurement and resetting

- Bidirectional measurement, Reverse energy calculated into forward

- Current flow direction indication

- LCD simulation disk

Technical Parameters

Specification		DDS5558/1S	DDS5558/2S
Accuracy	Active	Class1.0	Class1.0
Voltage	Rated	120/240V	120/240V
	Range	0.9Un~1.1Un	0.9Un~1.1Un
	Limit	0.8Un~1.2Un	0.8Un~1.2Un
Frequency		50/60Hz	50/60Hz
Current	Range	CL100,CL200	CL100,CL200
Starting Current		0.4%Ib	0.4%Ib
Constant	Active	Kh1.0/Kh/1.6/Kh2.0	Kh1.0/Kh/1.6/Kh2.0
Form		1S	2S
Display	Type	LCD	LCD
Display	Digit	5+0/5+1/6+1	5+0/5+1/6+1
Power Consumption	Voltage Circuit	≤1.5W	≤1.5W
Power Consumption	Current Circuit	≤2VA	≤2VA
Communication	Interface	Optical/Infrared/RS485 (Optional)	Optical/Infrared/RS485 (Optional)
Communication	Protocol	MODBUS,DLT/645,IEC1107	MODBUS,DLT/645,IEC1107
Temperature	Working Temperature	-25℃~+55℃	-25℃~+55℃
Temperature	Storage Temperature	-40℃~+70℃	-40℃~+70℃
Humidity		≤95%	≤95%

Dimension&wiring Diagram

DDS55558 CL200 Single Phase Two Wire 1s/2s Energy Meter
