High quality single phase 220V digital power meter voltmeter rs485

Name: High quality single phase 220V digital power meter voltmeter rs485
Brand: Gomelong
Price: 6.50 USD

Buy cheap High quality single phase 220V digital power meter voltmeter rs485 product

Place of Origin : Zhejiang, China

Brand Name : Gomelong

Model Number : OML-5376

Display Type : Digital Only

Measuring Range : OEM

Accuracy Class : Class0.5

Supply Voltage : OEM

Operating Temperature : -10-45℃

Dimensions : 72/80/96/120/48*96

Display : LED Display

Key words : power meter

Frequency : 50/60 HZ

Overload : Permanent: 1.2 times; temporary: 2 times/10s

Operation range : AC220V or SMPS: AC/ 80~270V

Communication : RS-485, MODBUS-RTU protocol

Material : ABS

Installation method : Embedded

Price : $6.50/Pieces

Contact Now

Please contact us to confirm the parameters before purchase and there are more offers.

High quality single phase 220V digital power meter voltmeter rs485

Product Description

High quality single phase 220V digital power meter voltmeter rs485

Product Description

Single phase Current meter measure Current in the power grid by AC sampling technique. The meter are programable and able to set the ratio by pressing the keys on the panel.with features of convenient installation.Easy wiring and maintenance,

programable at site etc. The meters can also proceed the network communication between different PLC and industrial control computers among the industry.

Technical Data

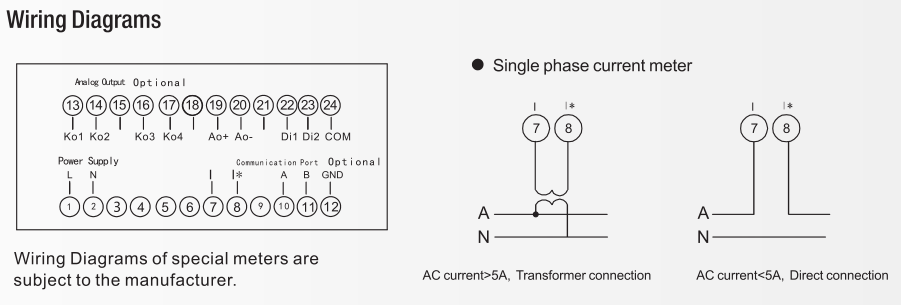

Wiring	Single phase
Rated current	AC5A
Rated voltage	0-500VAC or 0-100VDC
Overload	Permanent: 1.2 times; temporary: 2 times/10s
Accuracy	Class 0.5
Frequency	45-65 Hz
Operation range	AC400V
Working range	AC 80V~270V,AC 220V,AC 380V,AC 100V
Power consumption	≤ 5VA
Communication	RS-485, MODBUS-RTU protocol
Working temperature	-10~+55℃
Relative humidity	≤93 %,in the place without corrosive gas

MASS_APP4_1159_BEGIN

High quality single phase 220V digital power meter voltmeter rs485

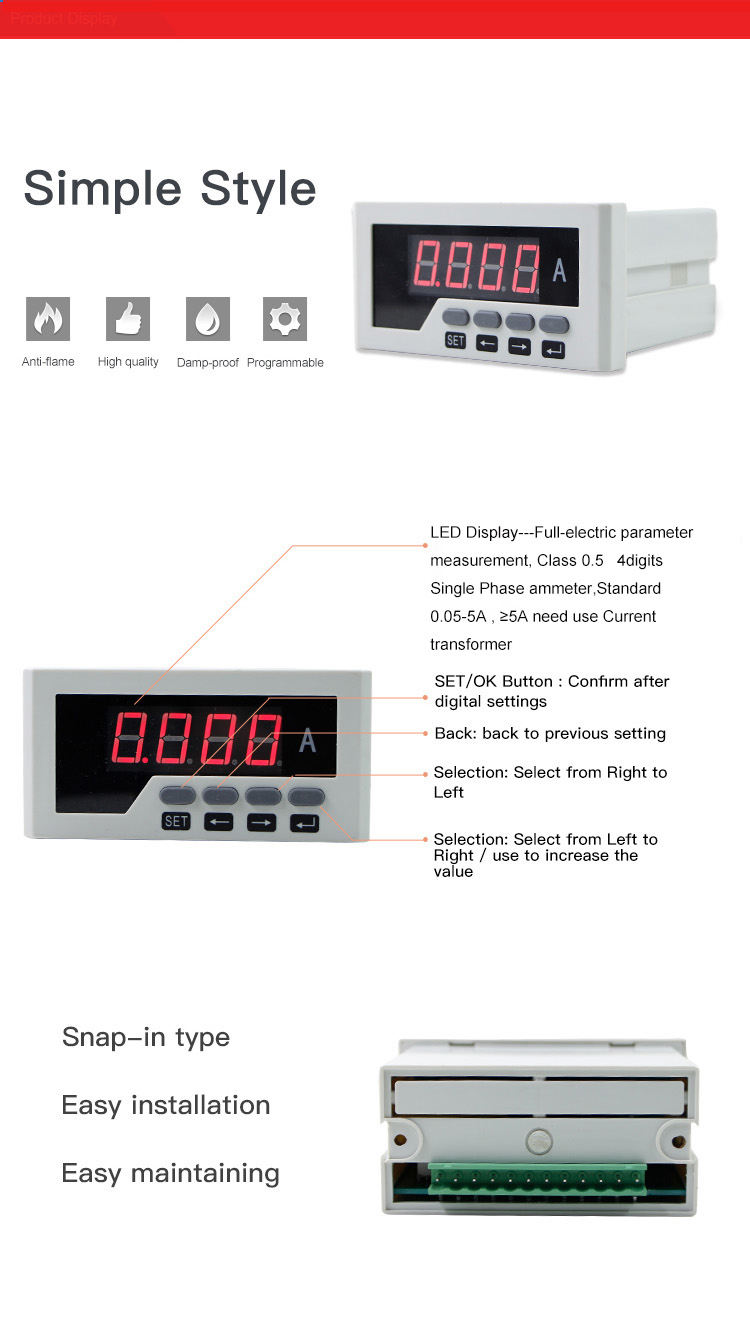

High quality single phase 220V digital power meter voltmeter rs485 Images
